HDBaseT Extender over Single Cat5e/Cat6 with ARC and Digital Audio Breakout

SKU: EVEXARC1 Categories: , , , ,

This product has been discontinued.

Description



View Our Extender Comparison Guide



  • Features the latest HDBaseT Technology – optimized for whole-home or commercial distribution of high definition signals at much greater distances of standard HDMI cables

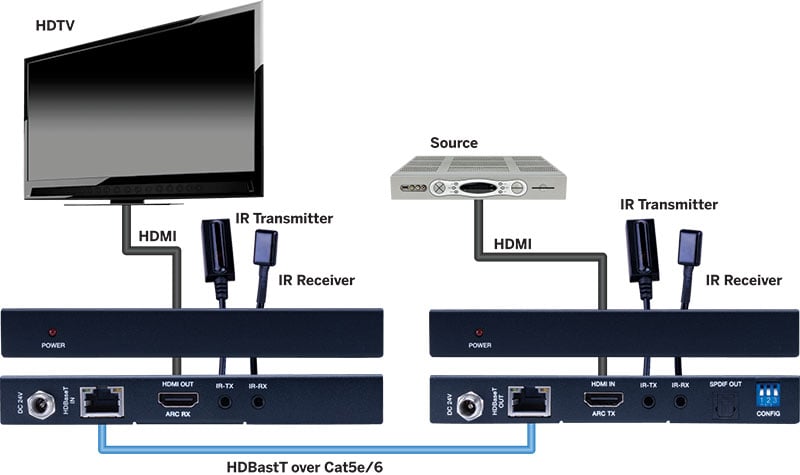

  • ARC functionality allows audio to be received from the HDMI port on the receiver unit to be sent to an amplifier via the optical audio breakout on the transmitter unit
  • SPDIF digital audio breakout for any source components without ARC
  • Transmission Range: Extends 1080p@60Hz up to 164ft/50m over a single Cat5e/6 cable
  • Features bi-directional Power over Cable (PoC) which transmits power over Cat5e/6, allowing for either the transmitter or receiver to be powered without the use of a power supply
  • Bi-directional IR pass-through for source and/or display control
  • Supports PCM, Dolby True HD, and DTS-master formats
  • Dimensions: 5.5”W x 2.6” H x 0.7” D

Package Contents:

EVEXARC1 HDBaseT Extender
IR Emitter
IR Receiver
24V DC Power Supply
Mounting Hardware
Product Manual

Additional information

Brands

Evolution

EVEXARC1 Product Manual

Download

EVEXARC1 Sales Sheet

Download
Find a Distributor
