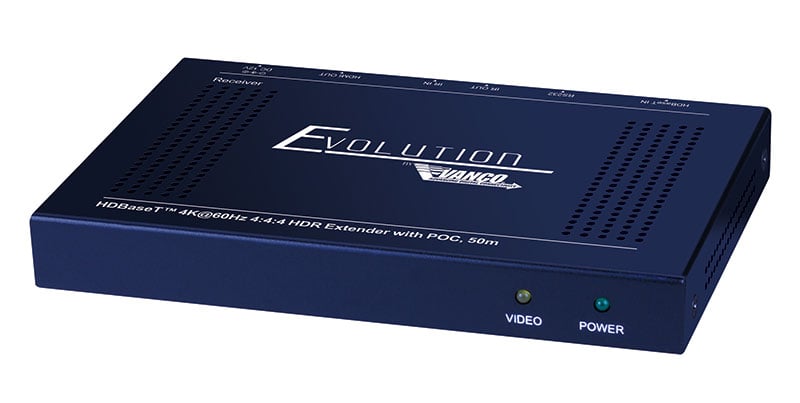

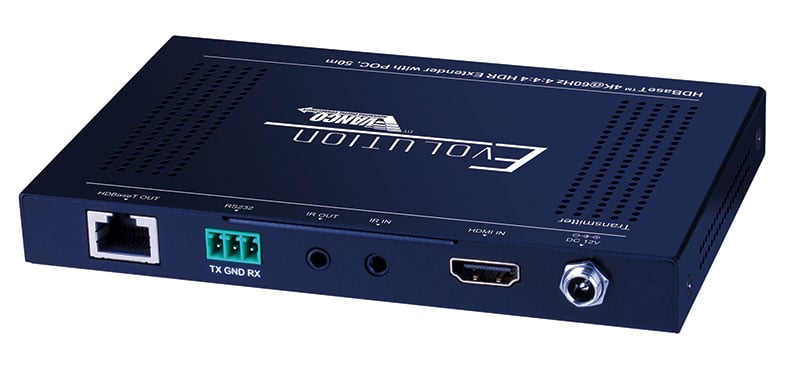

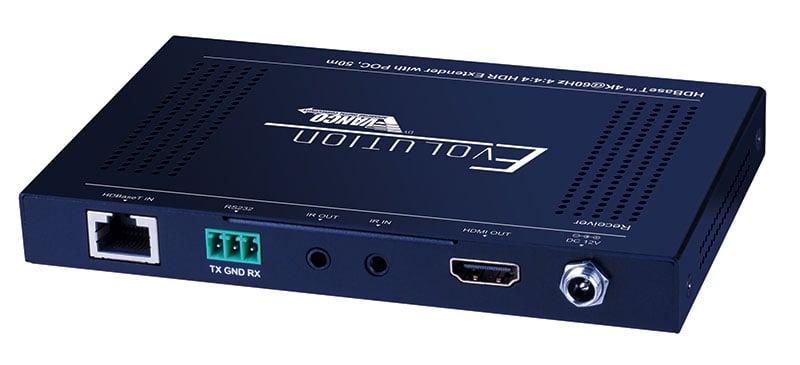

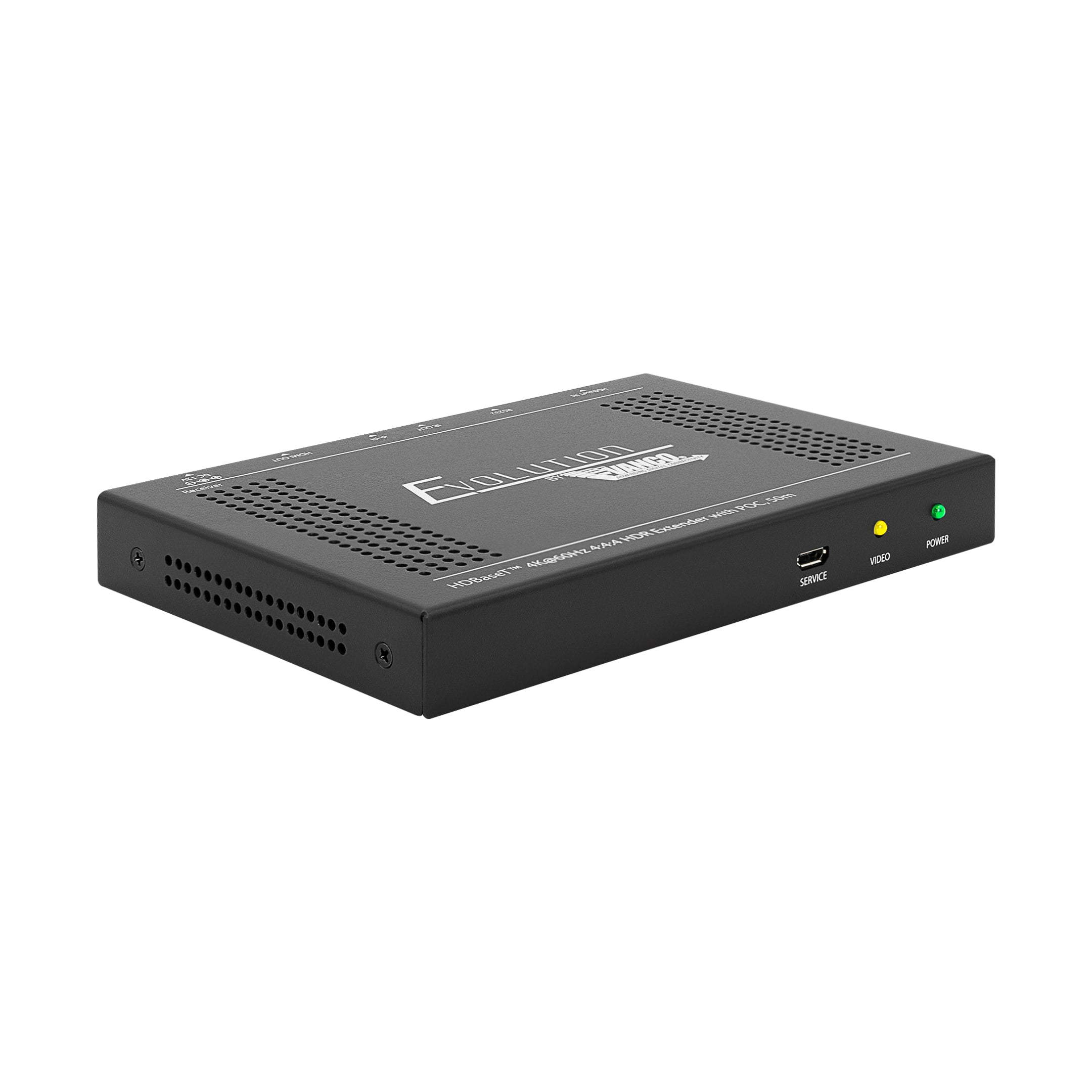

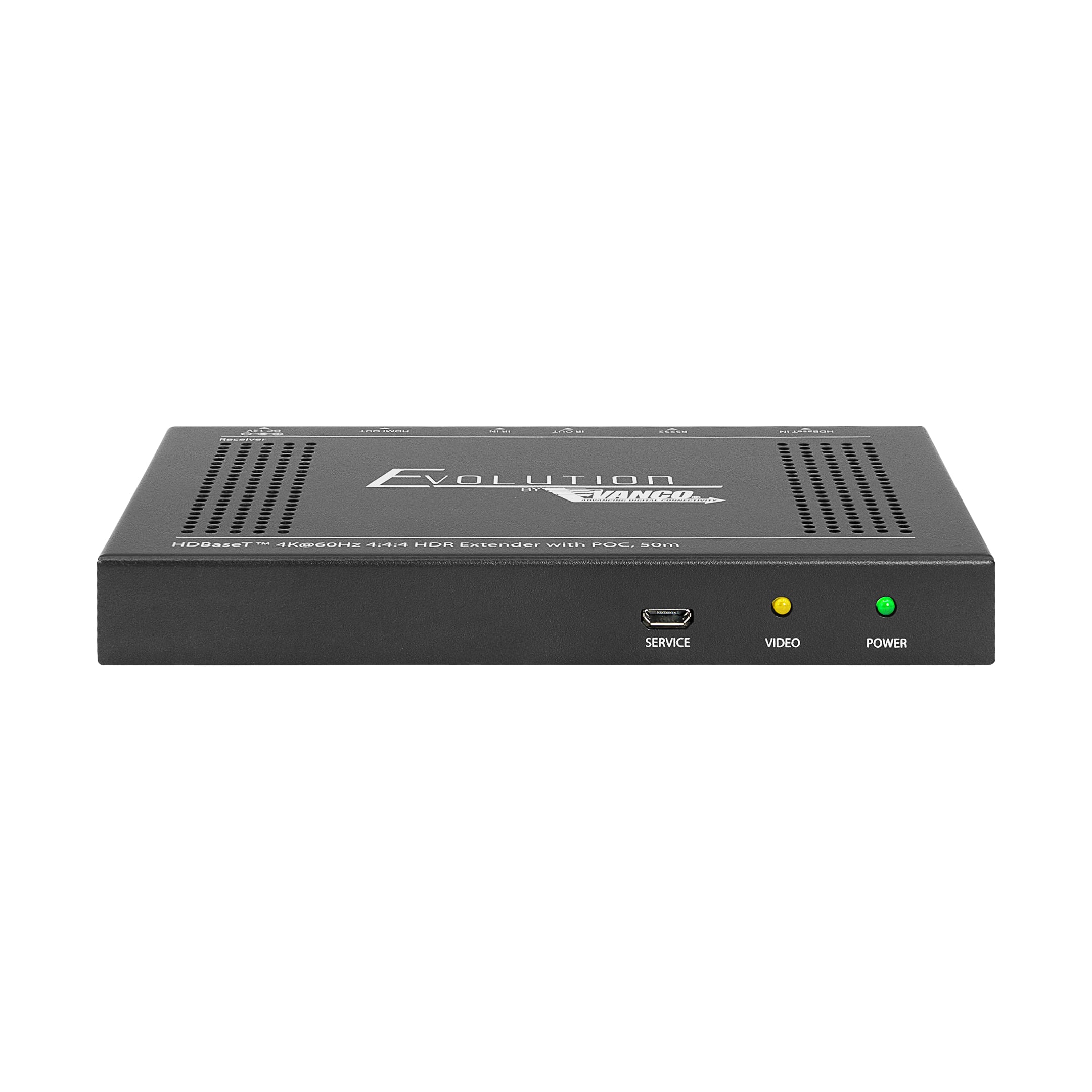

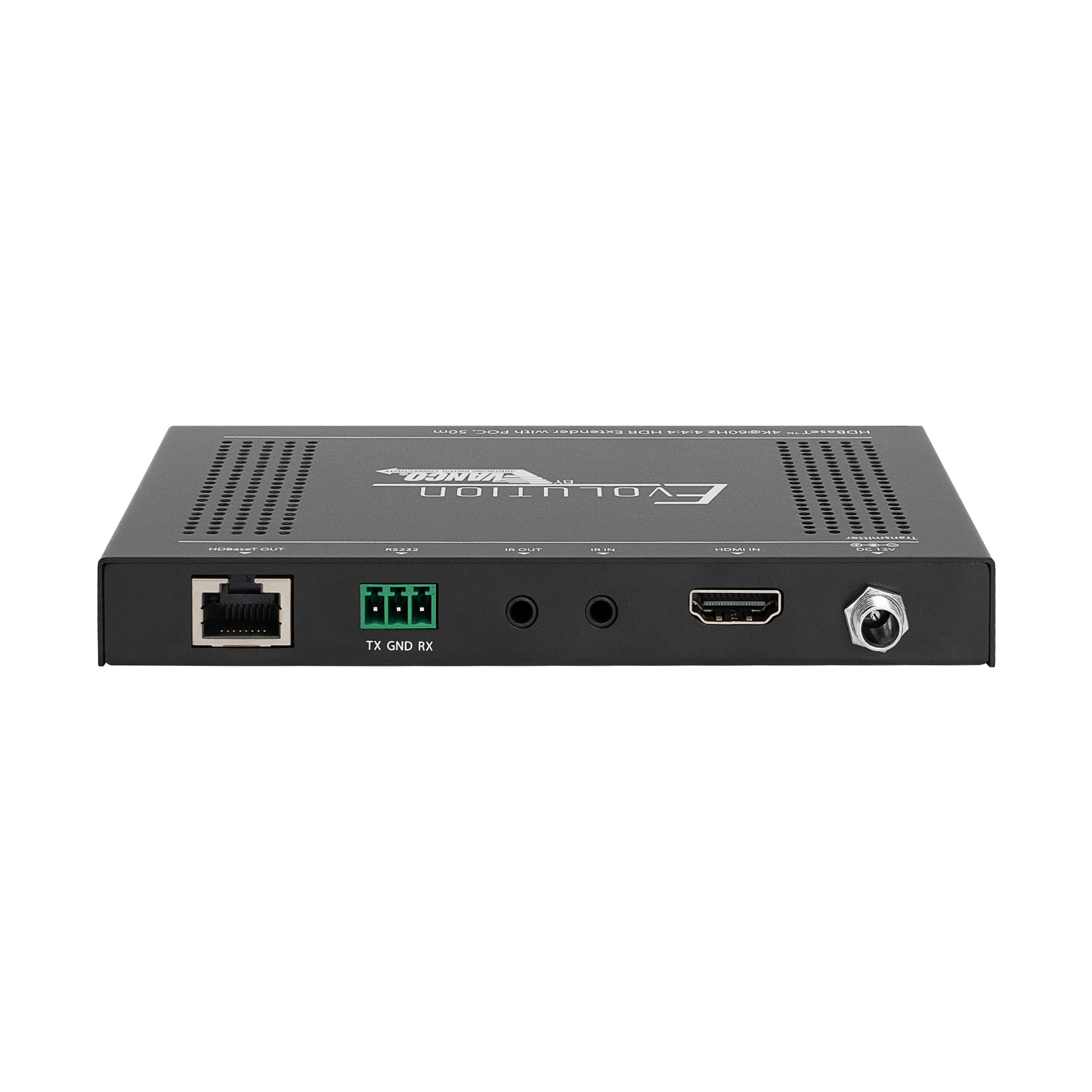

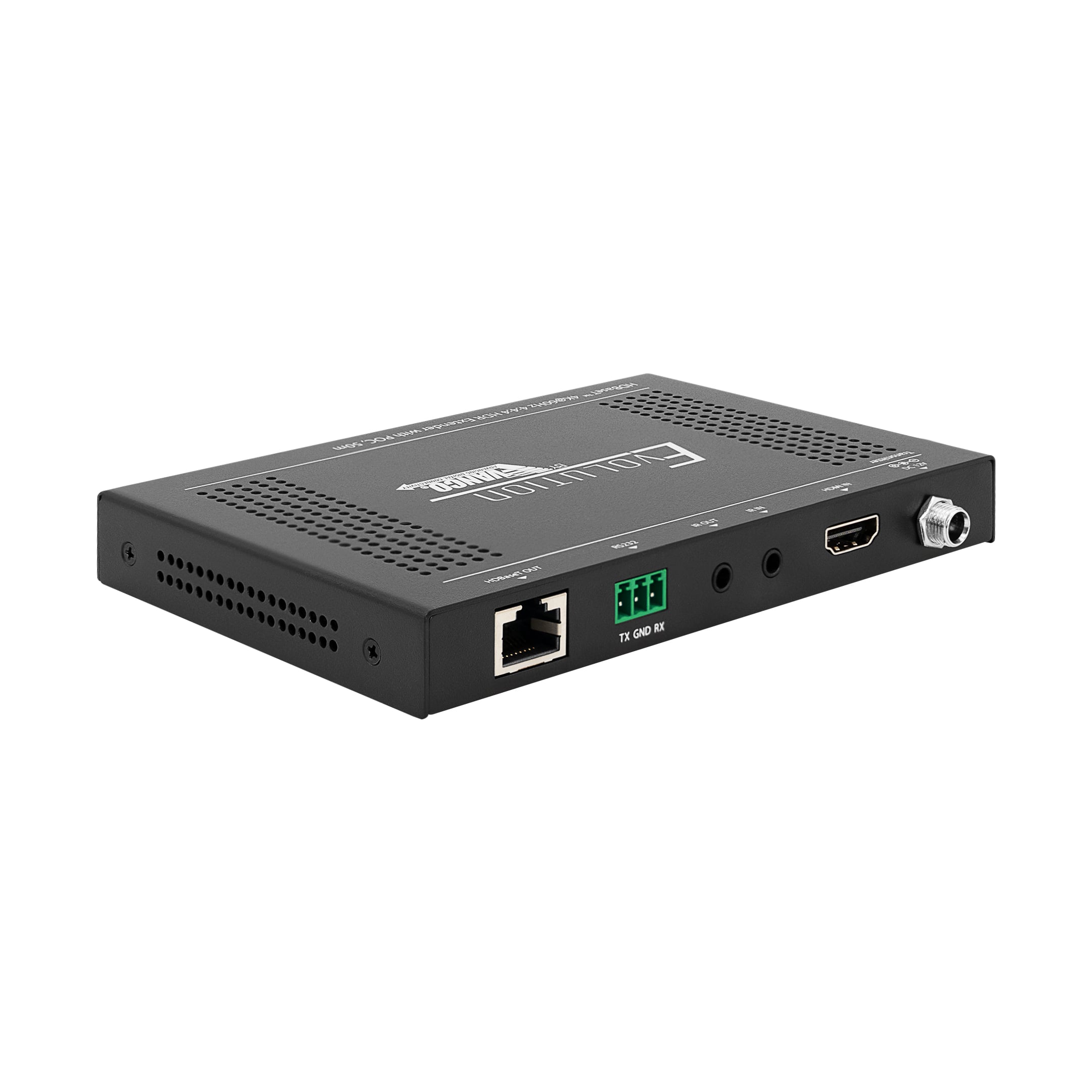

Evolution HDBaseT™ 4K@60Hz, 4:4:4 Chroma, HDR Extender 164ft/50m

SKU: EVEX4K50 Categories: , , Tag:

Description

View Our Extender Comparison Guide

  • Features the latest HDBaseT Technology, optimized for whole-home or commercial distribution of high definition signals at much greater distances compared to standard HDMI cables
  • Transmission Range: Extends 4K@60Hz, 4:4:4 with HDR up to 164ft/50m over a single Cat5e/6 cable and 1080p@60Hz up to 230ft/70m
  • HDR Compatible; passes HDR10 and Dolby Vison formats
  • Features Power over Cable technology (PoC) which transmits power over Cat5e/6, allowing for either Transmitter or Receiver to be powered without the use of a power supply
  • Virtually Lossless Compression retains high end audio and video quality
  • Bi-directional IR and RS232 control
  • Features Auto EDID and EQ Management for plug and play installation
  • HDCP 2.2 compliant and backward compatible to previous versions
  • CEC Support
  • Slim and compact design
  • Power Supply: DC 12V, 2A
  • Dimensions: 5.75″ W x .7″ H x 3.7″ D

Package Contents:

EVEX4K50 (TX & RX)
IR Transmitter (IR TX)
IR Receiver (IR RX)
(2) RS232 Cables (3-pin to DB9)
Mounting Hardware
(1) DC 12V Power Supply
Product Manual

Additional information

Type

Technology

HDBaseT

Brands

Evolution

Resolution

4K@60Hz

Transmission Distance

165 – 230 ft

EVEX4K50 Product Manual

Download

EVEX4K50 Sales Sheet

Download
