Description

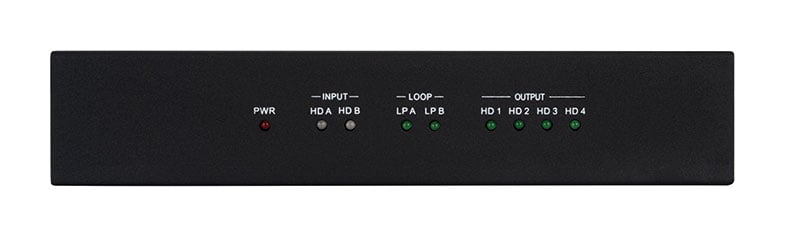

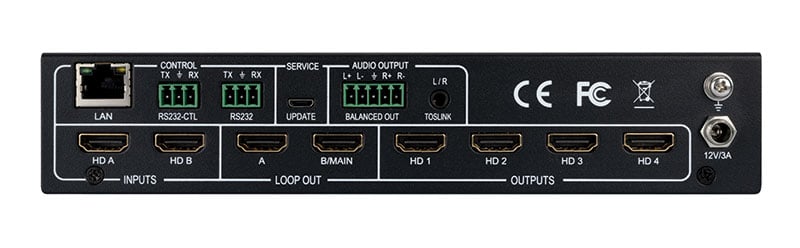

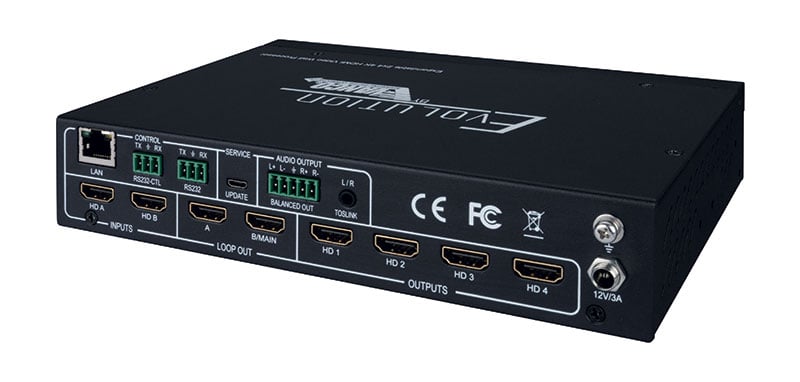

- 4K 2×4 HDMI Video Wall Processor
- Allows for 16 rows and columns of displays in any video wall configuration up to 16×16
- Two HDMI loop-outs to cascade into other units for larger video walls or to monitor sources locally
- Two HDMI inputs allow for multiple source video wall configurations, or to switch one source across the entire video wall display
- Passes up to 4K@60Hz with HDR
- Able to scale output resolutions
- HDMI 2.0 and HDCP 2.2 compliant
- Customizable options for bezel adjustment
- Supports 180° screen rotation
- Able to be controlled over RS232 and TCP/IP via product software or 3rd party control systems
- Dimensions: 8.5” W x 5.7” D x 1.7” H
Tech Support Tips:
-
- Larger video wall configurations requiring multiple units can ONLY be setup and controlled via RS-232

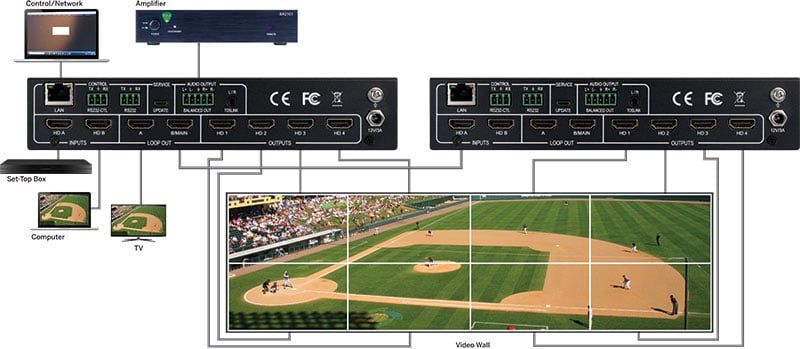

- When multiple units need to be connected for larger video wall configurations, once the device is given a Device ID of 2 or greater is provided to the unit, it will need to be connected to the first unit in order to be controlled or accessed through the software
- Please ensure your source input resolution are set to a resolution OTHER than 720P/1280×720 when creating a video wall
- To prevent overheating when using multiple units, make sure you provide ample spacing between units of at least 1inch/25mm
Package Contents:
2×4 Video Wall Processor
5-pin Phoenix Connector
(2) 3-pin Phoenix Connector
RS232-Phoenix Connector Adapter Cable
Digital Audio Optical Adapter
12V/3A Power Supply
Mounting brackets and screws
Product Manual
