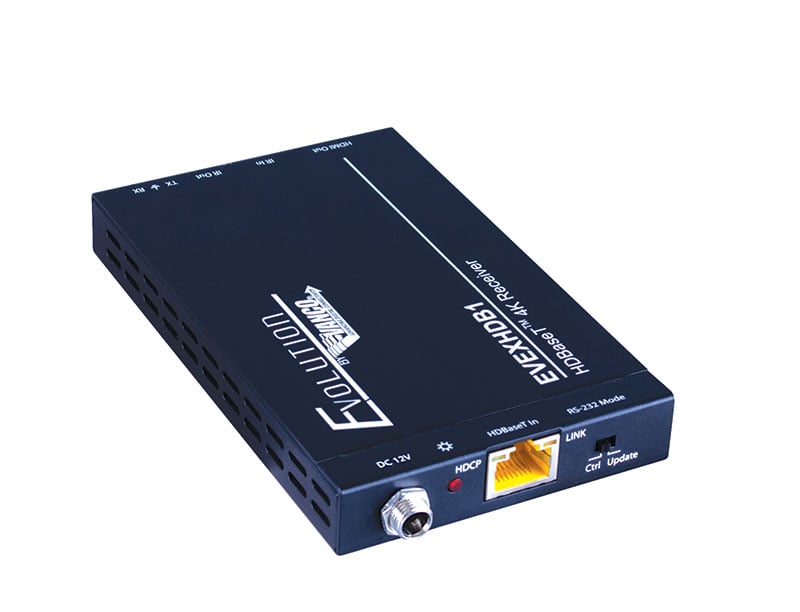

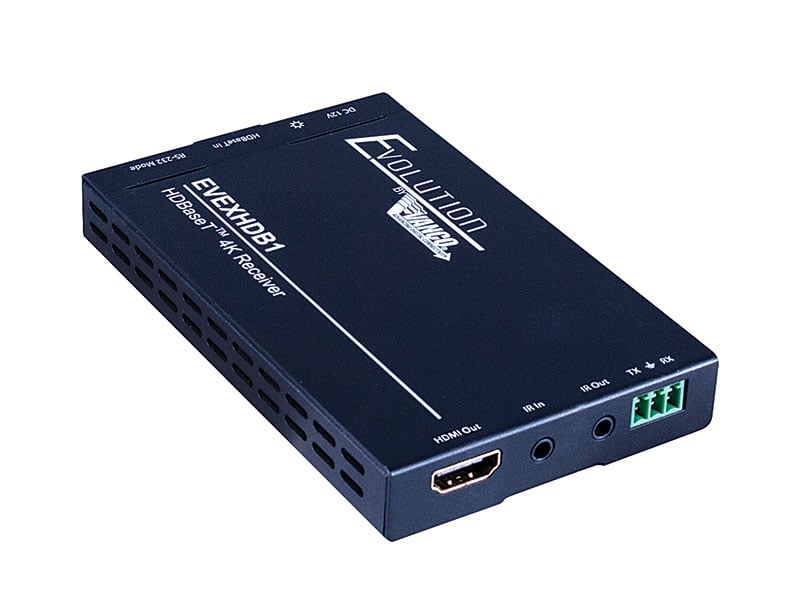

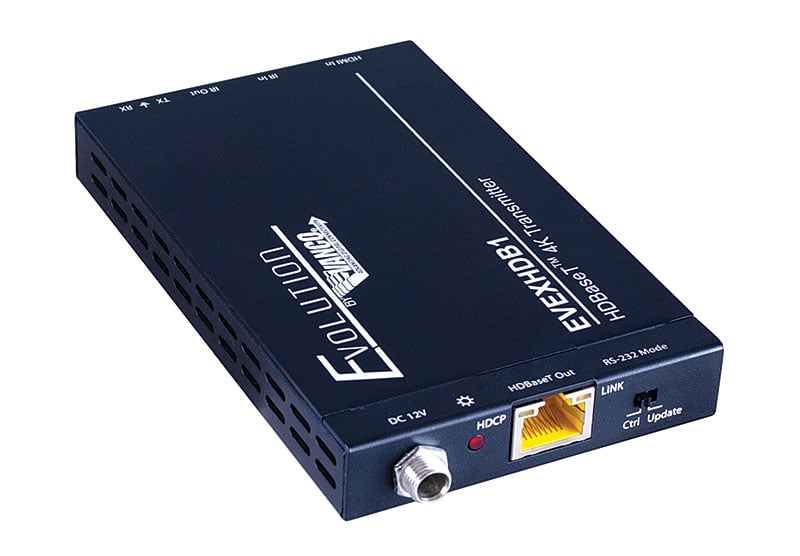

Evolution HDBaseT™ Extender

SKU: EVEXHDB1 Categories: , ,

Description

View Our Extender Comparison Guide

  • Features HDBaseT Technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at more than twice the distance of standard HDMI cables without degradation

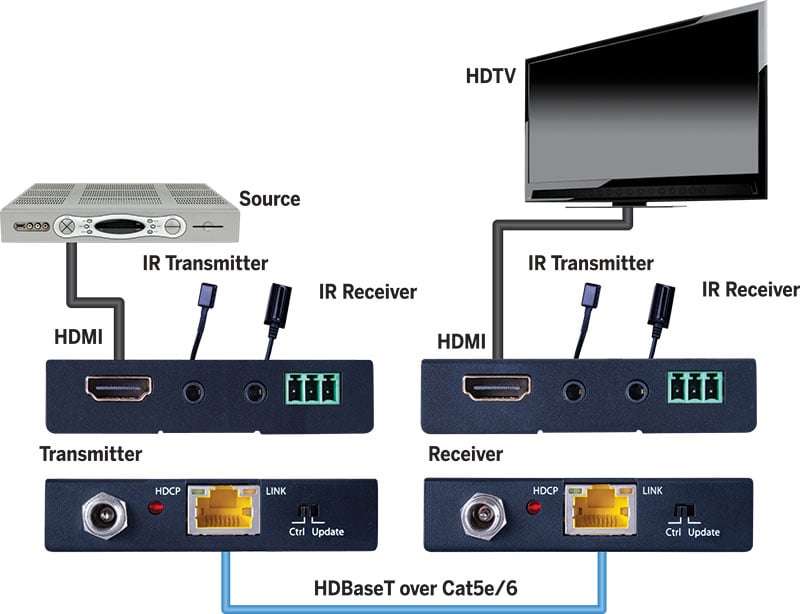

  • HDBaseT Extender can connect uncompressed full HD digital video and audio through a single 230ft/70m Cat5e/Cat6 cable
  • Features Power over Cable (PoC) Technology which transmits power over Cat5e/6- allowing for either Transmitter or Receiver to be powered without the use of a power supply. The result is an easy and flexible installation with low maintenance
  • Transmission Range: Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 4K@60Hz- 4:2:0 color subsampling up to 131ft (40m)
  • Bi-directional IR control
  • High Bandwidth: 10.2Gp
  • HDCP 2.2 compliant
  • CEC Support
  • Slim and compact design
  • Power Supply: DC 12V
  • Dimensions: 2.9” W x .7” H x 4.7” D

Tech Support Tips:

    • HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
    • Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues

Package Contents:

EVEXHDB1 (TX & RX)
(1) IR Blaster (TX)
(1) IR Receiver (RX)
(1) DC 12V in line power supply
Mounting Hardware
Product Manual

Additional information

Type

Technology

HDBaseT

Brands

Evolution

Resolution

4K@60Hz

Transmission Distance

165 – 230 ft

EVEXHDB1 Product Manual

Download

EVEXHDB1 Sales Sheet

Download
