Description
- Speaker Type – In Ceiling Dual Voice Coil
- Woofer – 6.5” Poly
- Tweeter – 1” Silk Dome Dual Voice Coil
- Frequency – 46 Hz – 22 kHz
- Sensitivity – 89db
- Butyl Rubber Surround
- Sonic Vortex® Ported Transmission Line

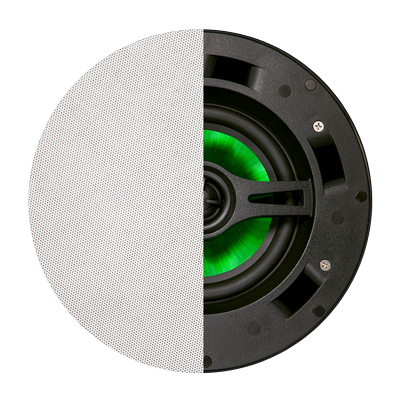

- Magnetic Bezelless Grille – White; paintable
- Impedance – 8Ω
- Connector Type – 4 Pin Terminal
- Depth – 6.8″ (172mm)
- Speaker Weight – 7 lbs (3.18kg)
- Cutout – 8.4″ (214mm)
- Diameter – 9.4″ (239mm)
- Power Handling – 5-90W
- Pivoting Tweeter
- EZBracket Size – F
- Highlights – Unique Single Tweeter DVC Design
Tech Support Tips:
-
- The IC6DVC-B utilizes a 4 pole phoenix connector, if for any reason the connector is lost, misplaced, or mislabeled, the correct configuration from left to right is: + – + – (positive, negative, positive, negative).
- B = Better
- MB = More Better
- BB = Better than their Best
- We have a Good, Better Best formula in our model hierarchy. However, the “B” in our model number designates “Better” since we believe that our “Good” is better than the competitions “Good”. So, we start with Better and have some fun with the other suffixes.
