Description
View Our Extender Comparison Guide
- Allows HDMI audio/video and KVM (keyboard, video, mouse) signals to be transmitted using a single Cat6/6A/7 Cable
- Extends 4K@60Hz, 4:4:4, and HDR10 up to 230ft/70m and 1080p up to 330ft/100m
- HDCP 1.4/2.2 compliant
- Extends USB control and data signals for keyboards, mice, and touchscreen displays
- Visually zero-latency (up to 30ms)

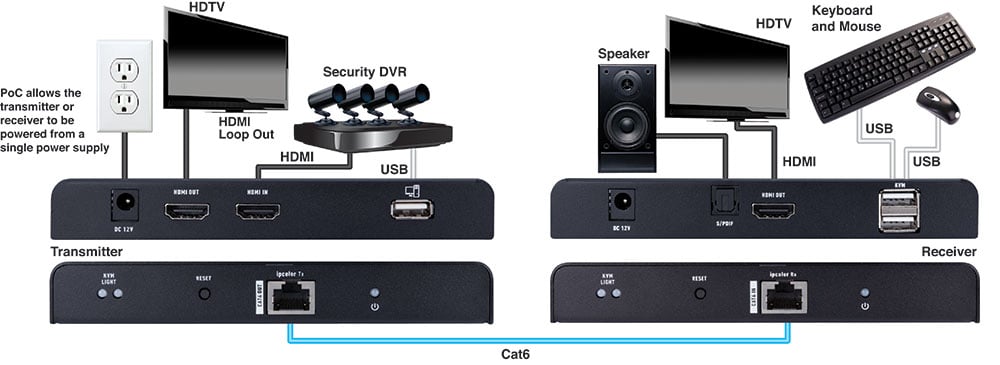

- Features bi-directional Power over Ethernet (PoE) technology which transmits power over Cat6, allowing the transmitter and receiver to be powered off a single power supply
- Supports multiple audio formats such as (Dolby TrueHD 7.1CH/Dolby Digital 5.1CH)
- Dynamic EDID for compatibility and plug and play operation
- HDMI loop-out for local monitoring or use with other HDMI distribution products
- Digital optical audio breakout for audio extraction
- Slim and compact design
- Dimensions: 5.9” W x 4.2”H x 1.1”D (150mm x 107mm x 28.4mm)
- Patent No. 9,710,038 B1
Package Contents:

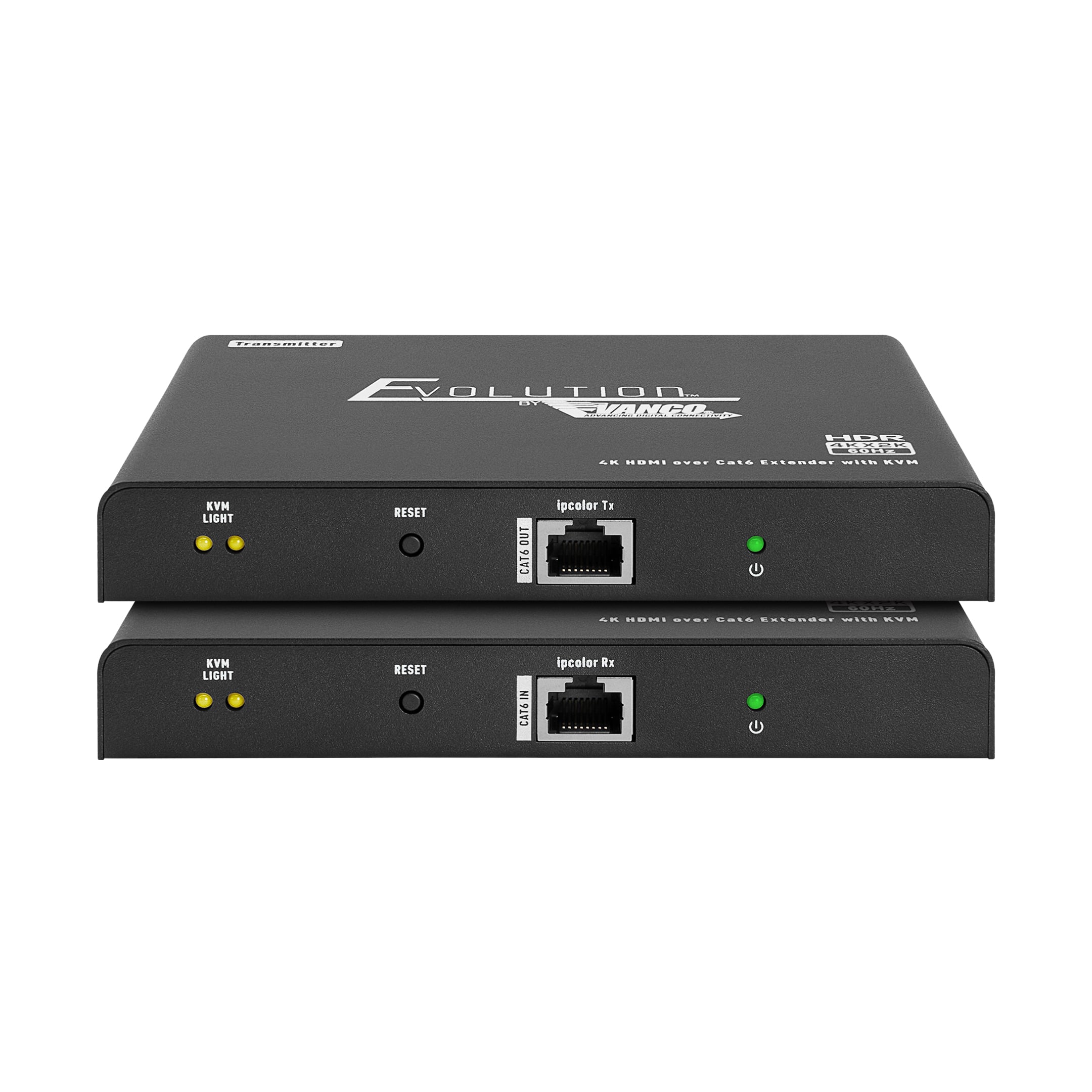

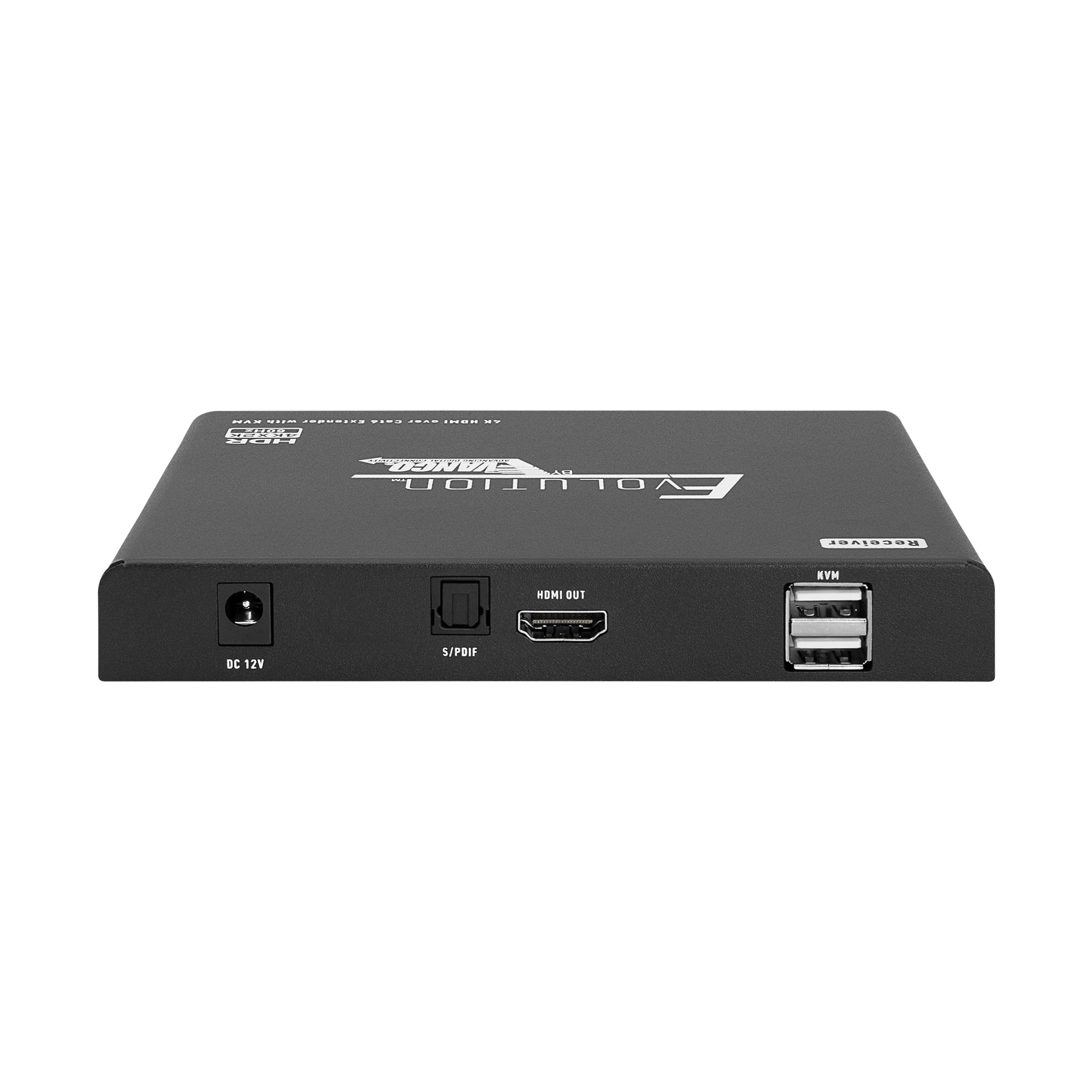

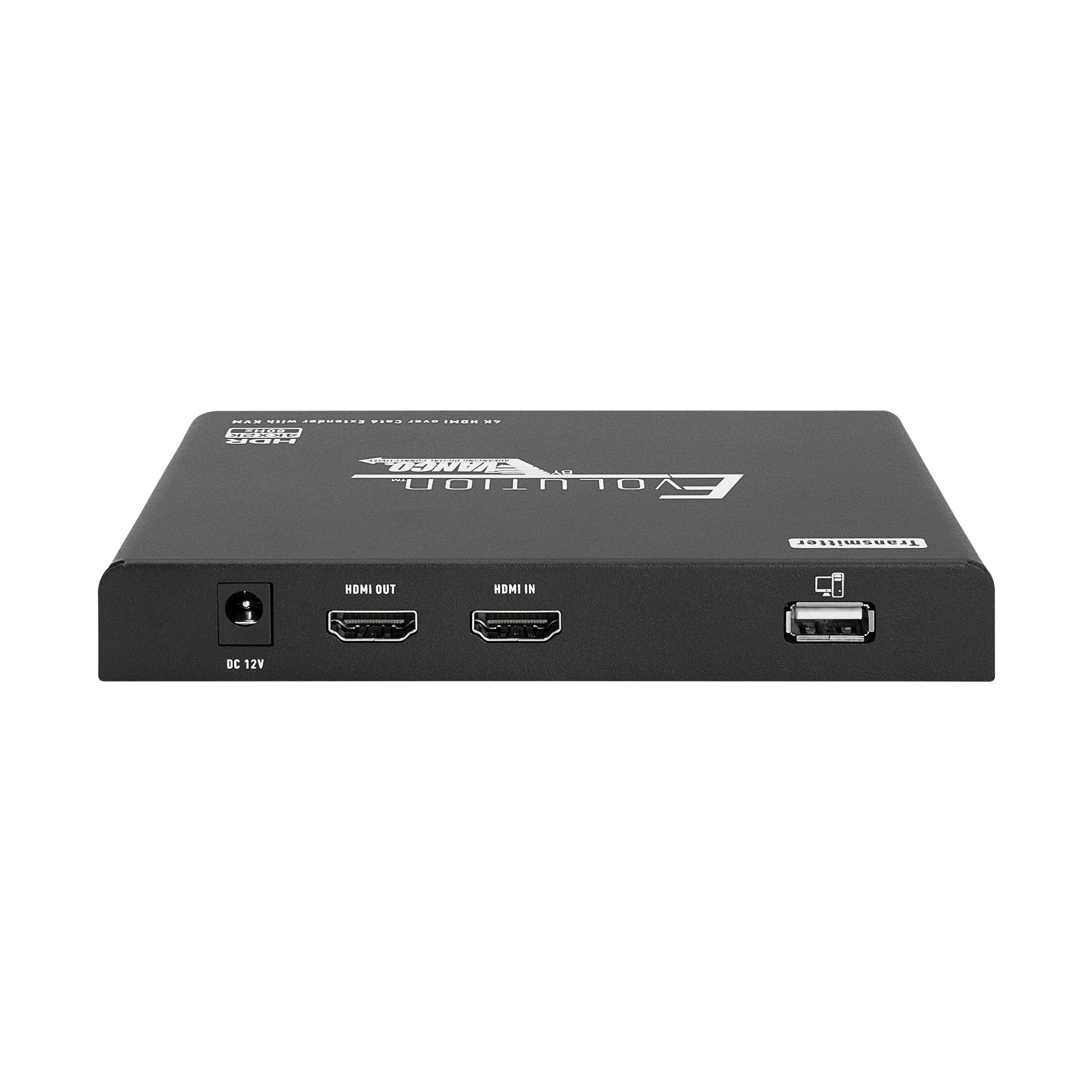

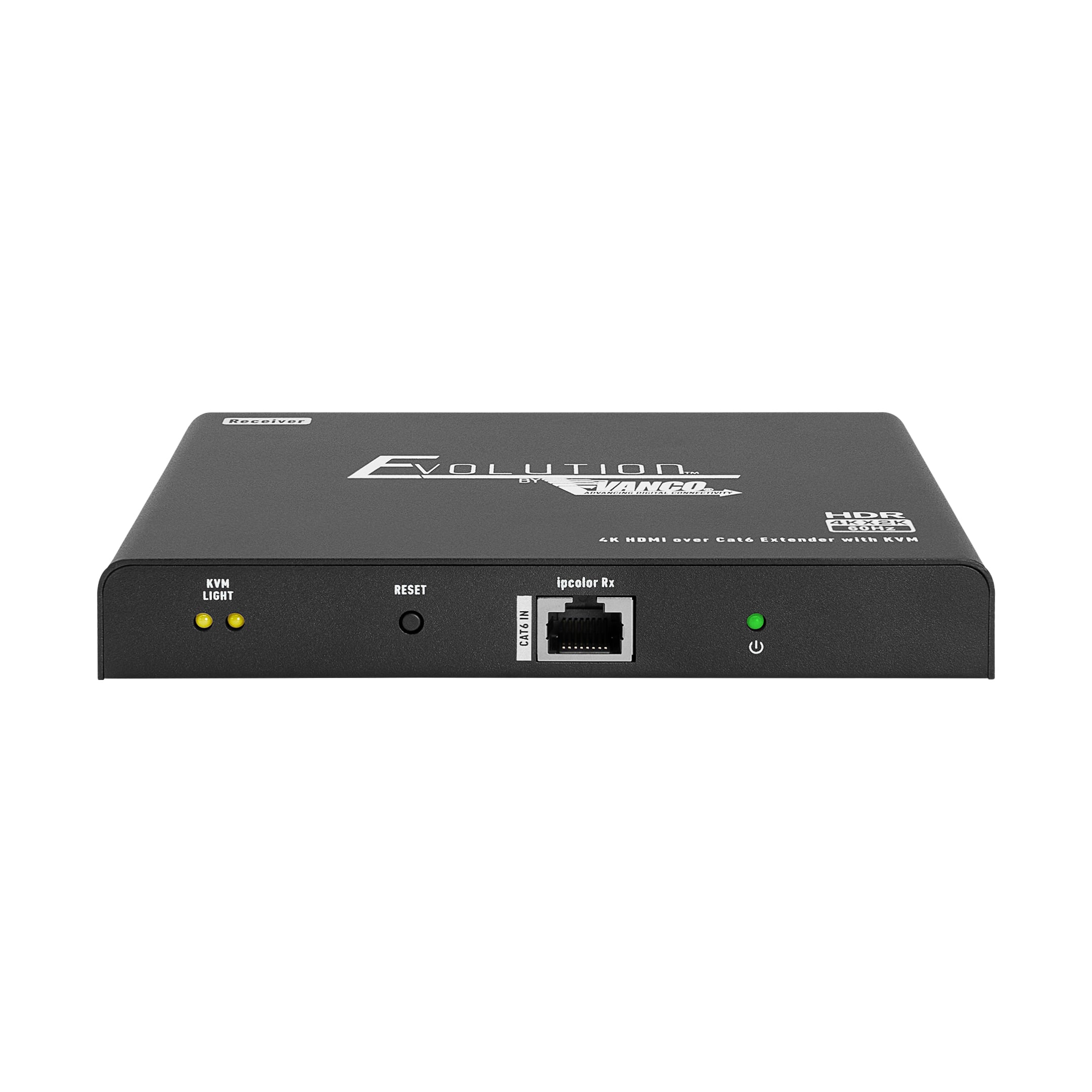

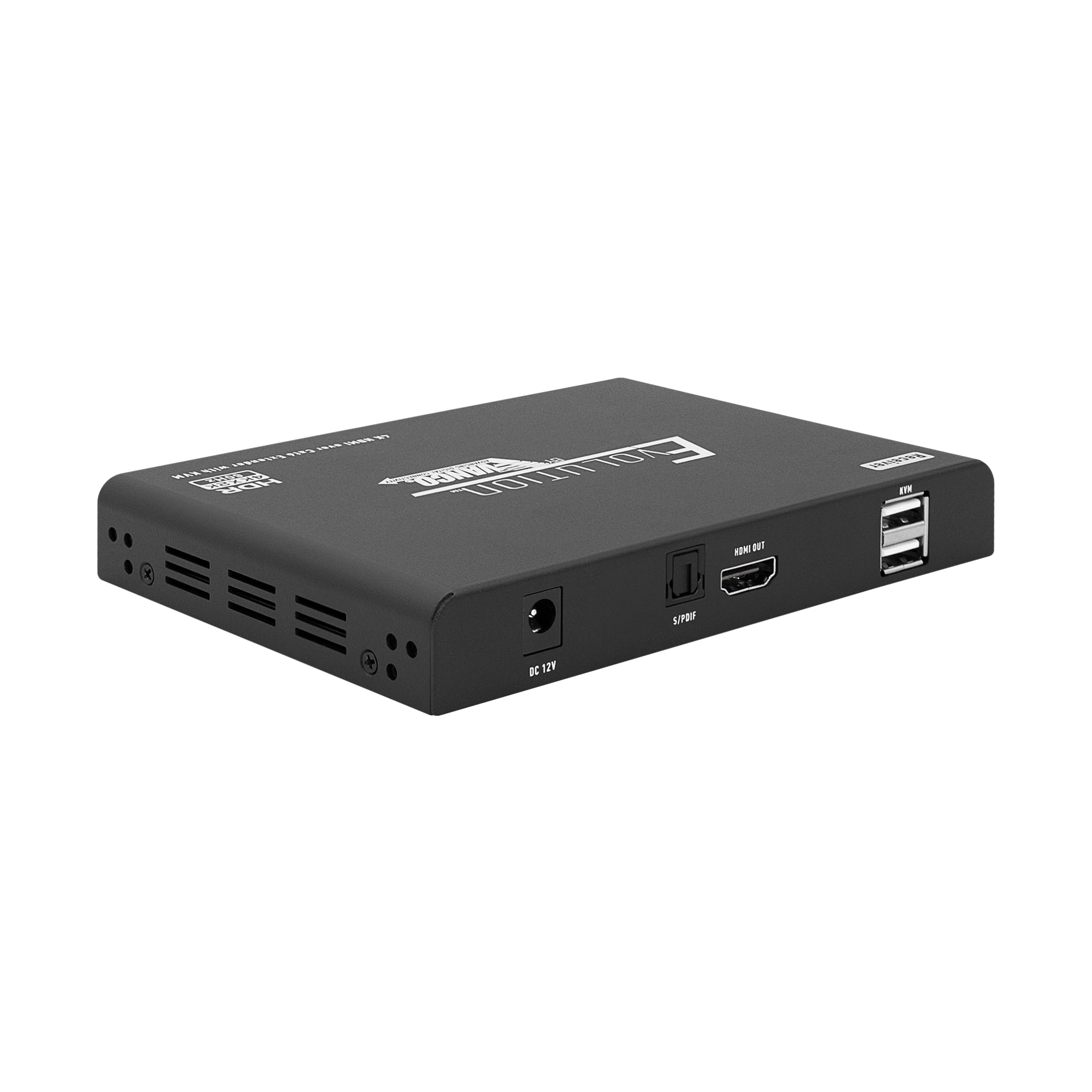

EVEXKVM3 (TX & RX)
12V/2A Power Supply
USB Type A to USB Type A cable
(8) Mounting Brackets
(18) Screws
Product Manual
