40W Single Channel Amplifier

SKU: PAV140 Categories: ,

Description

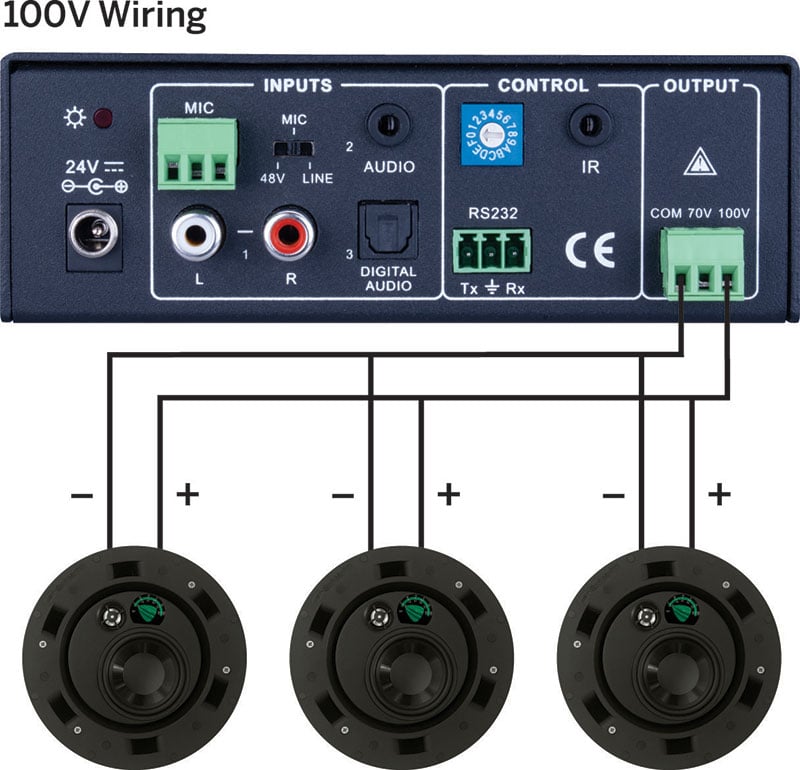

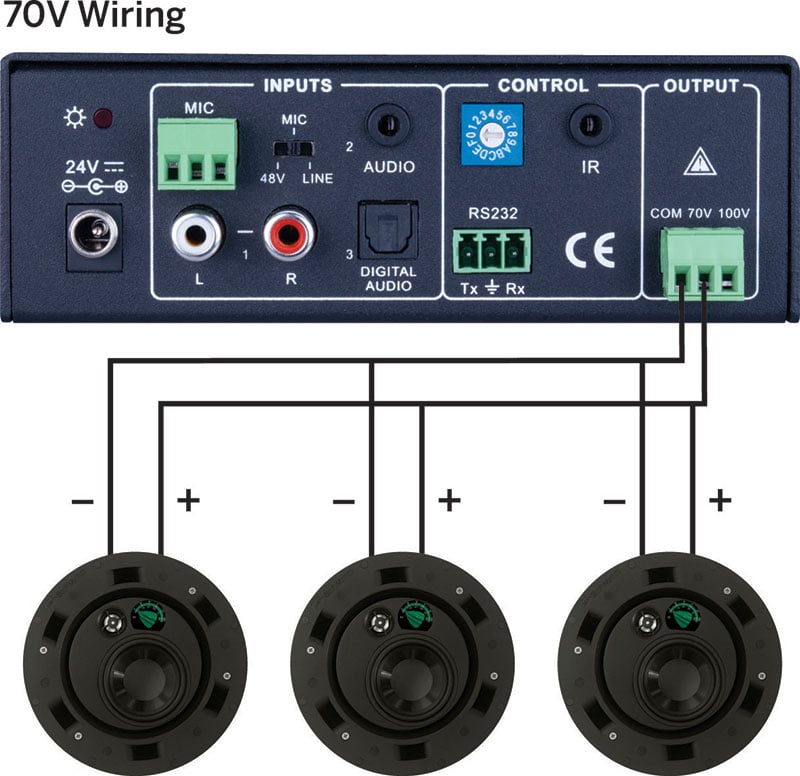

  • Compatible with 70V/100V speakers and systems
  • Controllable via front panel, IR or RS232

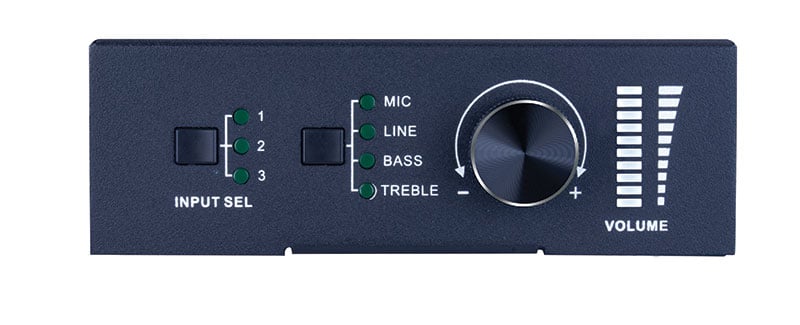

  • Manual Volume Control and menu selection dial for easily changing volume, bass, treble, and microphone levels
  • 16 ID codes for addressing and controlling multiple units
  • 3-level MIC input with ducking functionality , supports condenser microphone, dynamic microphone and wireless microphone.
  • MIC port can support balance/unbalance signal to effectively suppress external noise
  • Two analog stereo audio inputs and one digital audio input
  • Mounting accessories included
  • Dimensions: 5.12” W x 1.73” H x 5.67” D
  • Product Weight: 1.9 lbs

Additional information

Weight 3.35 lbs
Dimensions 12 × 8 × 3 in
Brands

PulseAudio

PAV140 Sales Sheet

Download

PAV140 RS232 Commands and Protocol

Download

PAV140 Product Manual

Download

PAV140 IR Hex Commands

Download
