Description
- Extends HDMI signals wirelessly up to 164ft/50m
- Supports up to 1080p@60Hz HD video and audio
- IR pass-through to control source from display location wirelessly
- No line of sight installation required, wireless signal can pass through most obstacles
- HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
- Supports LPCM 2.0ch 32KHz/44.1KHz/48KHz Audio Formats
- Utilizes H.265 high performance codec technology
- Low latency with less than 120ms
- Compact design for easy and flexible installation behind a display
- Dimensions: 3” W x 3.8” D x 0.8” H
Tech Support Tips:
-
- The HDEXWIR wireless HDMI extender is a point to point extender, with no ability to split the wireless signal
- While the TX and RX units are paired from the factory, it is strongly recommended that only one extender be used per application, as multiple units may cause interference with each other
- Utilizes a 5.8GHz frequency
Package Contents:

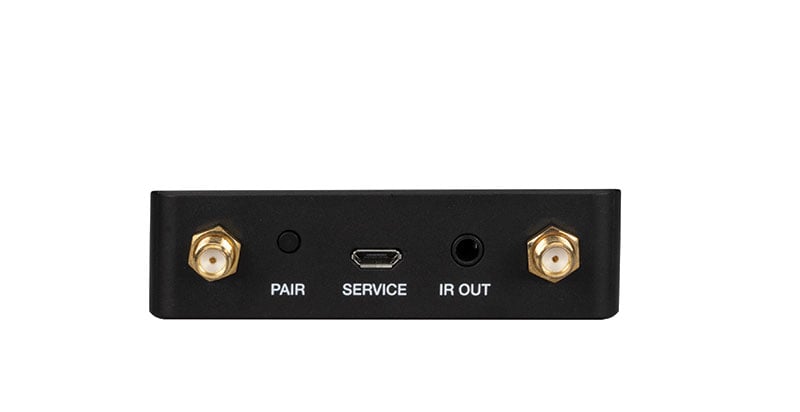

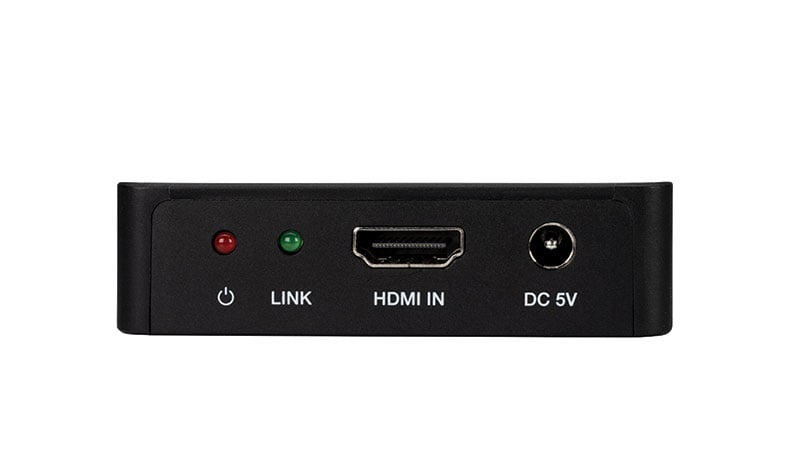

HDEXWIR Transmitter (TX)

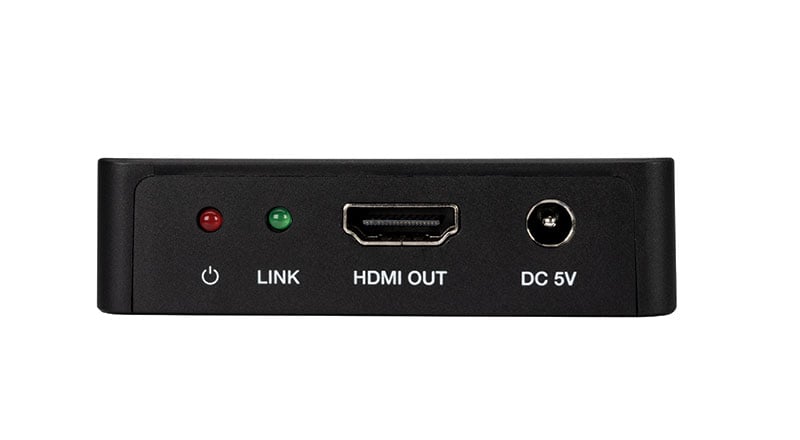

HDEXWIR Receiver (RX)
IR Blaster (TX)
IR Receiver (RX)
5G WiFi Antenna (2 for each unit)
(2) 5V/1A Power Adapters
Product Manual
